How do I see my arc flash data?

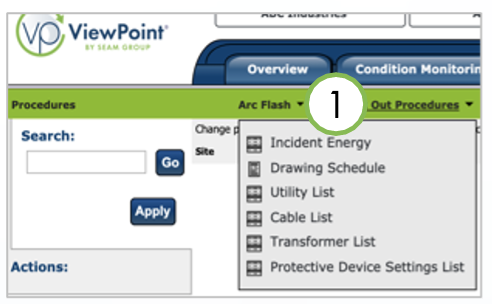

Select the Safety Services tab, then Arc Flash (1) to view the Incident Energy Report, Drawing Schedule, Utility List, Cable List, Transformer List or Protective Device Settings List.

VIEW SINGLE-LINE DRAWING

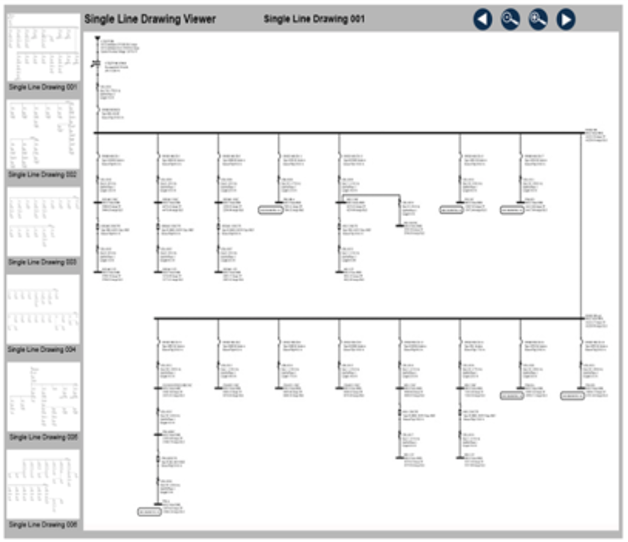

You can view the single-line drawing for the asset you are standing in front of while on the floor. This is beneficial for troubleshooting circuits, LOTO, and overall replacement or circuit additions to be able to view the single-line drawing from your laptop or tablet.

VIEW THE TIME CURRENT CURVES (TCC)

Time Current Curves are the representation of the device clearing time based on the fault it sees. TCC’s are tools in determining how to reduce the arc flash hazard as provided in our mitigation recommendations to reduce the hazard and ultimately PPE required.

If you need further assistance, please email us at vphelp@seamgroup.com
